你好，歡迎來到深圳市鴻源精密器材有限公司網站！

產品分類

您現在的位置：首頁 >> 產品中心 >> 經典輕觸開關 >> 6X6插件輕觸開關DIP

商品名稱： 6X6插件輕觸開關DIP
商品編號： 1TS005A
材質：底座（材質：PPA）、端子（材質：黃銅-Ag）、彈片（材質：SUS301-Ag/磷銅-Ag），按鈕 (材質：PPA)、蓋板（材質：不銹鋼）
適用范圍：門禁設備按鍵、數顯卡尺按鍵、車載音響設備、路由器復位鍵

Item	Tact switch detail	Tact switch detail 2
Article number	1TS005A	1TS005A
Model	1TS005A	1TS005A
Series	1TS005	1TS005

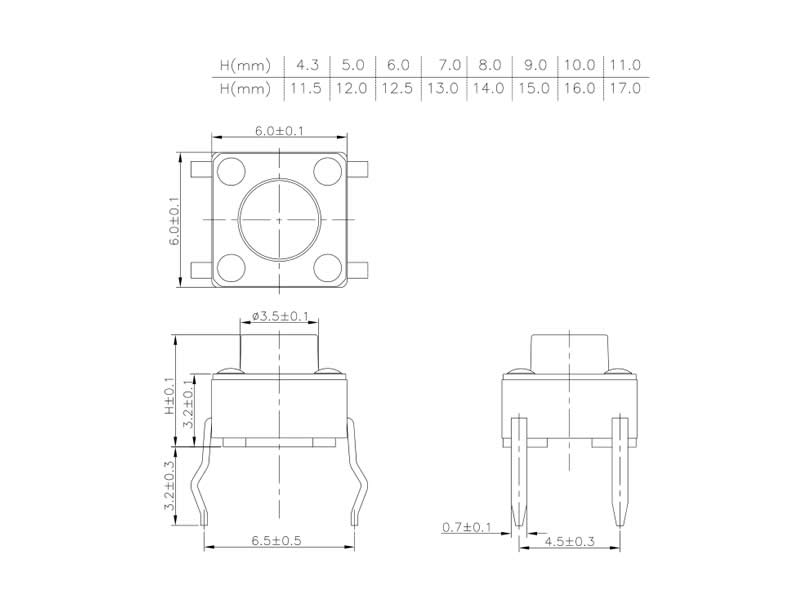

(LxW) (mm)	6*6mm	6*6mm
(H) (mm)	4.3/5.0/7.0/11.0/12.0±0.1mm	4.3/5.0/7.0/11.0/12.0±0.1mm
Installation height (mm)	4.3/5.0/7.0/11.0/12.0±0.1mm	4.3/5.0/7.0/11.0/12.0±0.1mm
Operation	Top-press type	Top-press type
Welding type	SMD	SMD
Live-fire type	Surface mount	Surface mount
Maximum rating	DC 12V/50mA	DC 12V/50mA
Contact resistance (<mΩ)	500mΩ max.	500mΩ max.
Insulation resistance (MΩ at 100V DC)	DC100V 60S 100MΩ min.	DC100V 60S 100MΩ min.
Withstanding voltage	AC250V(50~60HZ) 60S min.	AC250V(50~60HZ) 60S min.
Response time	<10ms (ON, OFF)	<10ms (ON, OFF)
Operating force	160gf	250gf
Stroke	Short stroke	Short stroke
Stroke (mm)	0.25±0.1mm	0.25±0.1mm
Operating life	100000 or more	100000 or more
Operating temperature	–40℃～+90℃	–40℃～+90℃
Storage temperature	–40℃～+90℃	–40℃～+90℃
Package style	Reel packaging	Reel packaging
Mini pakage	1000PCS/reel	1000PCS/reel
Mini pakage	1000PCS/Packaging	1000PCS/Packaging
CTNS/QTY	12reel/ctn	12reel/ctn
