Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website！

Product

product name: Top push SMD7.4*9.1mm
Product Number: 1TS005E
Material: PPA/BRASS-Au/SUS
Scope of application: Industrial control, power meter switch, Netcom telecommunications equipment

Product case: Electrical equipment, industrial control, network equipment, household electrical appliances, toys

Reference alternative:

Item	Tact switch detail
Article number	1TS005E
Model	1TS005E
Series	1TS005
(LxW) (mm)	9.1*7.4mm
(H) (mm)	3.85±0.1mm
Installation height (mm)	3.85±0.1mm
Operation	Side-press type
Welding type	SMD
Live-fire type	Surface mount
Maximum rating	DC 12V/50mA
Contact resistance (<mΩ)	500mΩ max.
Insulation resistance (MΩ at 100V DC)	DC100V 60S 100MΩ min.
Withstanding voltage	AC250V(50~60HZ) 60S min.
Response time	<10ms (ON, OFF)
Operating force	150gf
Stroke	Short stroke
Stroke (mm)	0.25±0.1mm
Operating life	100000 or more
Operating temperature	–40℃～+90℃
Storage temperature	–40℃～+90℃
Package style	Reel packaging
Mini pakage	300PCS/reel
Mini pakage	300PCS/Packaging
CTNS/QTY	12reel/ctn

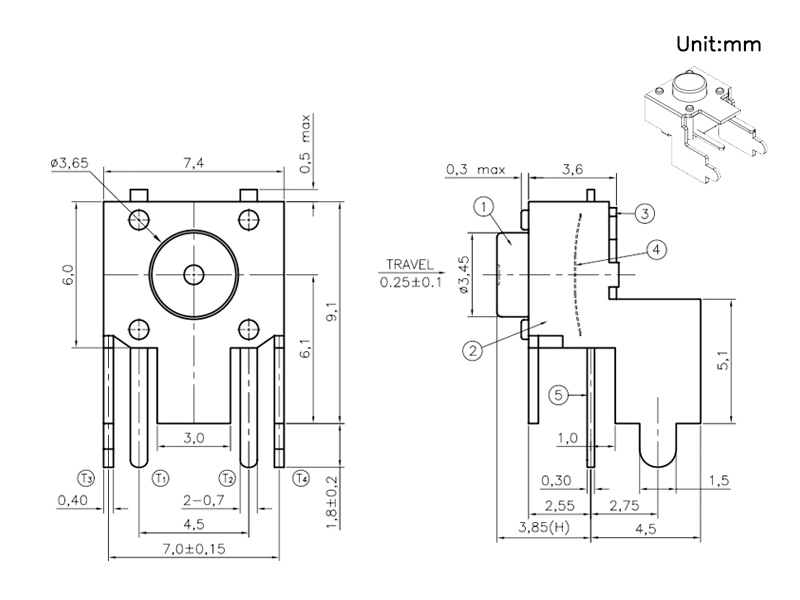

Dimensions:

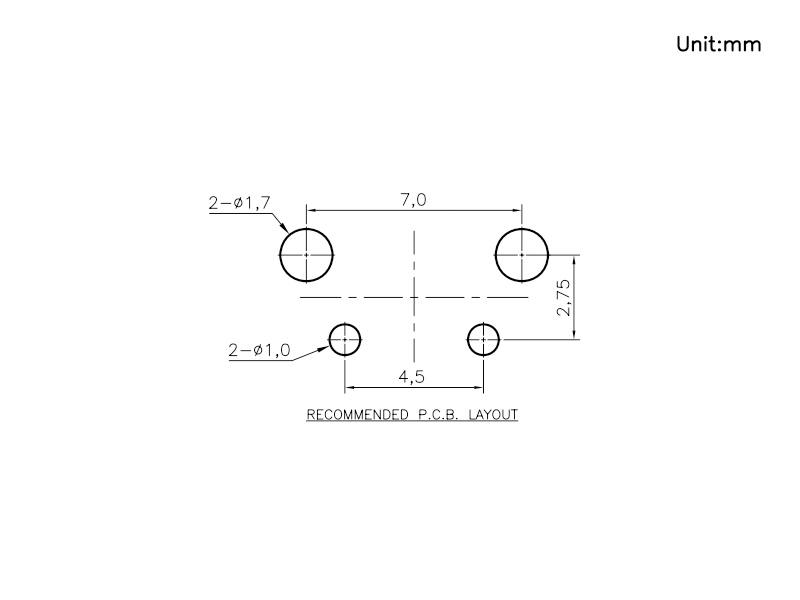

Welding diagram:

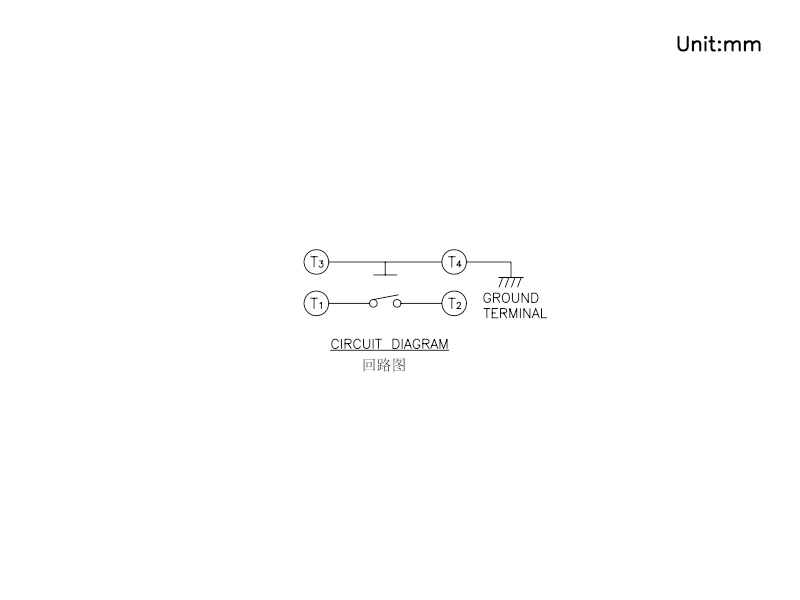

Circuit diagram:

Key words : Top push Switch,1TS005E
