Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website！

Product

Your present location:index >> Product classification >> 2040 Tact switch >>1TS003E

product name: Top push SMD2*4*3.5mm
Product Number: 1TS003E
Material: LCP/BRASS/STAINLESS STEEL
Scope of application: Medical instruments, Driving recorders, Headphones, Smart speakers, Toys, Pad,Id card,

2*4*3.5mm small switch, with both longevity and stability, excellent material, for side pressing type products

Item	Tact switch detail	Tact switch detail2	Tact switch detail3
Article number	1TS003E	1TS003E	1TS003E
Model	1TS003E	1TS003E	1TS003E
Series	1TS003	1TS003	1TS003
(LxW) (mm)	2.0*4.0mm	2.0*4.0mm	2.0*4.0mm
(H) (mm)	3.5±0.1mm	3.5±0.1mm	3.5±0.1mm
Installation height (mm)	3.5±0.1mm	3.5±0.1mm	3.5±0.1mm
Operation	Side-press type	Side-press type	Side-press type
Welding type	SMD	SMD	SMD
Live-fire type	Surface mount	Surface mount	Surface mount
Maximum rating	DC 12V/50mA	DC 12V/50mA	DC 12V/50mA
Contact resistance (<mΩ)	500mΩ max.	500mΩ max.	500mΩ max.
Insulation resistance (MΩ at 100V DC)	DC100V 60S 100MΩmin	DC100V 60S 100MΩmin	DC100V 60S 100MΩmin
Withstanding voltage	AC250V(50~60HZ)60Smin	AC250V(50~60HZ)60Smin	AC250V(50~60HZ)60Smin
Response time	<10ms (ON, OFF)	<10ms (ON, OFF)	<10ms (ON, OFF)
Operating force	160gf	180gf	250gf
Stroke	Short stroke	Short stroke	Short stroke
Stroke (mm)	0.2±0.1mm	0.2±0.1mm	0.2±0.1mm
Operating life	100000 or more	50000 or more	15000 or more
Operating temperature	–40℃～+90℃	–40℃～+90℃	–40℃～+90℃
Storage temperature	–40℃～+90℃	–40℃～+90℃	–40℃～+90℃
Package style	Reel packaging	Reel packaging	Reel packaging
Mini pakage	3000PCS/reel	3000PCS/reel	3000PCS/reel
Mini pakage
CTNS/QTY	13reel/ctn	13reel/ctn	13reel/ctn

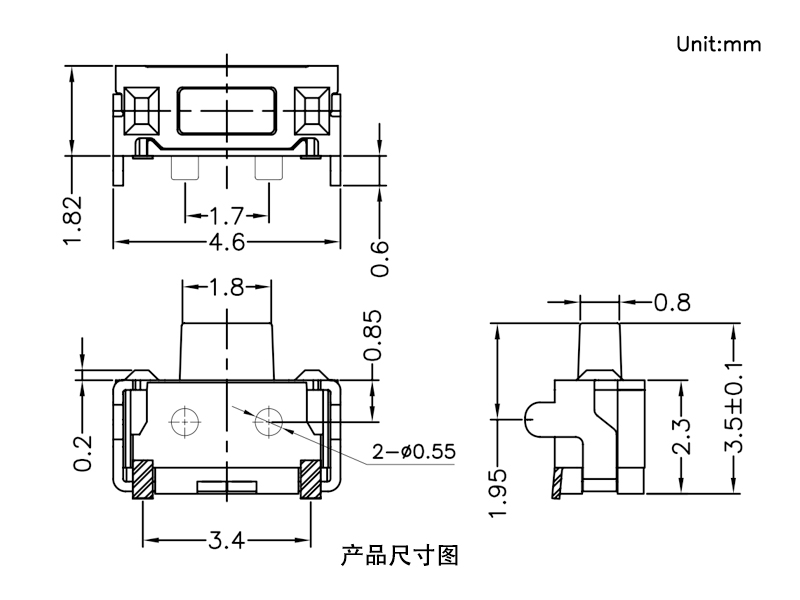

Dimensions:

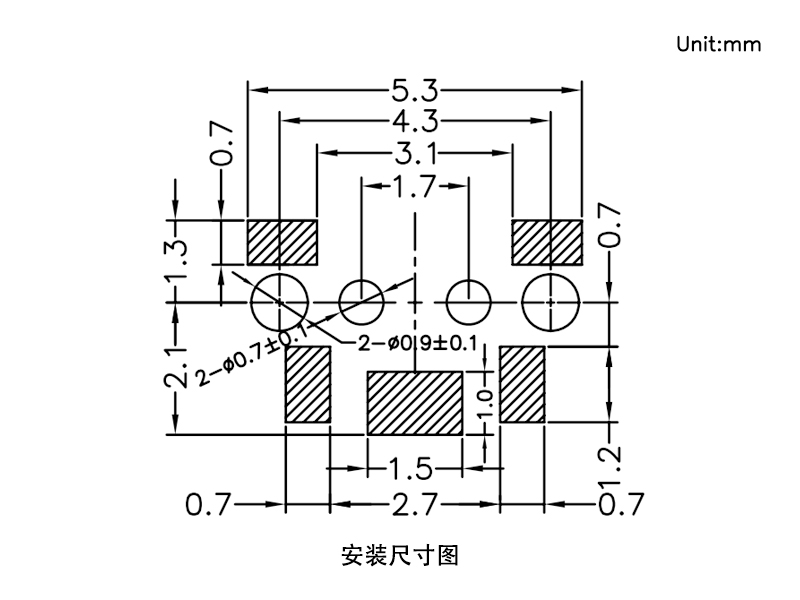

Welding diagram:

Circuit diagram:

Key words : Side switch,1TS003E
