Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website！

Product

Low-cost solutions: Electrical equipment, industrial control, network equipment, household electrical appliances, toys

Reference alternative:

Item	Tact switch detail	Tact switch detail 2
Article number	1TS001G	1TS001G
Model	1TS001G	1TS001G
Series	1TS00	1TS001
(LxW) (mm)	5.2*5.2mm	5.2*5.2mm
(H) (mm)	1.5/1.6/1.7±0.1mm	1.5/1.6/1.7±0.1mm
Installation height (mm)	1.5/1.6/1.7±0.1mm	1.5/1.6/1.7±0.1mm
Operation	Top-press type	Top-press type
Welding type	SMD	SMD
Live-fire type	Surface mount	Surface mount
Maximum rating	DC 12V/50mA	DC 12V/50mA
Contact resistance (<mΩ)	500mΩ max.	500mΩ max.
Insulation resistance (MΩ at 100V DC)	DC100V 60S 100MΩ min.	DC100V 60S 100MΩ min.
Withstanding voltage	AC250V(50~60HZ) 60S min.	AC250V(50~60HZ) 60S min.
Response time	<10ms (ON, OFF)	<10ms (ON, OFF)
Operating force	160gf	250gf
Stroke	Short stroke	Short stroke
Stroke (mm)	0.25±0.1mm	0.25±0.1mm
Operating life	100000 or more	100000 or more
Operating temperature	–40℃～+90℃	–40℃～+90℃
Storage temperature	–40℃～+90℃	–40℃～+90℃
Package style	Reel packaging	Reel packaging
Mini pakage	4000PCS/reel	4000PCS/reel
Mini pakage
CTNS/QTY	12reel/ctn	12reel/ctn

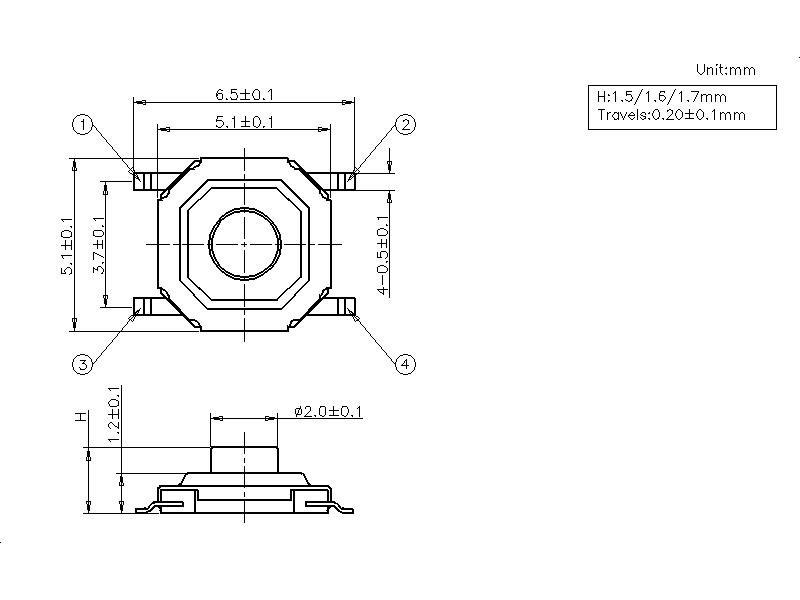

Dimensions:

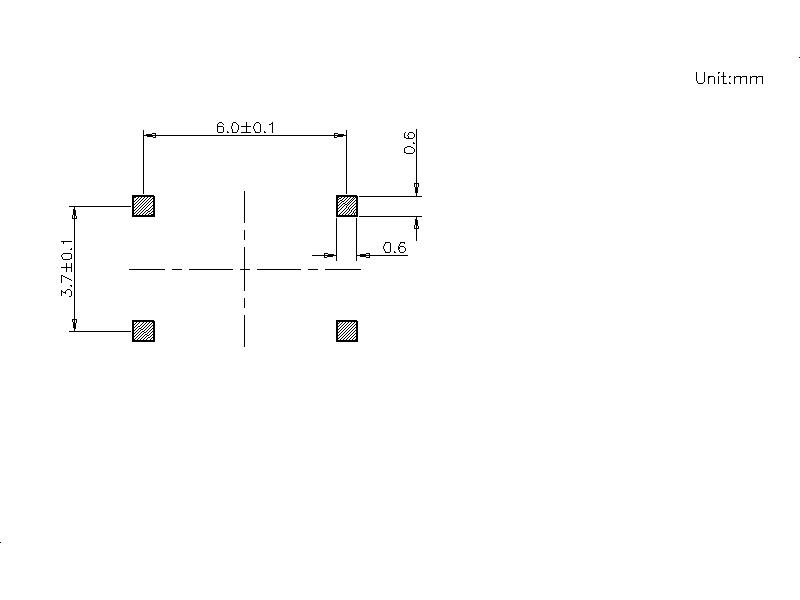

Welding diagram:

Circuit diagram:

Key words : Top push Switch,1TS001G
